Computer System for Steelmaking Facilities

Automatic operation system is necessary for Melt Shop in order to achieve more efficient and stable operation.  For the solution to such a needs, Steel Plantech offers the AUTO-ARC (for Electric Arc Furnace) and AUTO-LF (for Ladle Furnace) as high quality and low price computer system.
Both the AUTO-ARC and AUTO-LF provide not only automatic power input control but also a wide variety of functions for the improvement and standardization of your operations, including management functions such as monitoring and control of the facility, data collection, operation report, daily report, monthly logs, and statistical analysis of the collected performance data.

News List

4. Oct, 2023
Resolving concerns about high power supply all at once — launching sales promotion activities for the new power supply system, “CleanArc,” in October

Solutions

Production Volume Increase (Enhancement of Productivity)

Suitable power patterns by scrap, power, fuel additive and time slot can be pursued through the operational data analysis function, which is based on the pattern power control function and additional scrap charge/melt down determination control.
Flicker control and power demand control can also be provided.

Production Cost Reduction

The reduction of power and refractory consumption can be achieved through hot spot control, slag foaming guidance, heat loss analysis and other functions distinctive to the AUTO-ARC.

Customization

Records of each heat event, power/auxiliary fuel/auxiliary materials, analytical values, etc., are collected, and data for more than 10,000 charges are kept.
A diverse range of functions for the improvement of operations are provided, including reporting functions for operational logs, daily logs, and monthly logs as well as statistical analysis functions to support the evaluation of operations from past performance data.

References

Supplied To Country Capacity Start Up
  • Asia・Oceania
  • Topy Industries / Toyohashi Works Japan 2014 (Scheduled startup)
  • Vina Kyoei Steel Vietnam 2014 (Scheduled startup)
  • UMC Metals Thailand 2013
  • Shinkansai Steel / Hoshida Factory Japan 2013
  • Komatsu Castex Japan 2013
  • Kishiwada Steel Japan 2013
  • Otani Steel Japan 2010
  • Sumikin Steel & Shapes Japan 2010
  • Kanto Steel Japan 2010
  • Dongkuk Steel / Incheon Works South Korea 2010
  • Kobe Steel / Takasago Works Japan 2009
  • Sanko Seiko Japan 2008
  • Toyohira Steel Japan 2008
  • JFE Bars & Shapes / Sendai Works Japan 2007
  • Kyoei Steel / Hirakata Plant Japan 2006
  • Tokyo Steel / Okayama Plant Japan 2006
  • JFE Bars & Shapes / Himeji Works Japan 2004
  • Mitsuboshi Metal Japan 2004
  • Shinkansai Steel / Hoshida Factory Japan 2004
  • Kanto Steel Japan 2003
  • Kishiwada Steel Japan 2001

Technical Information

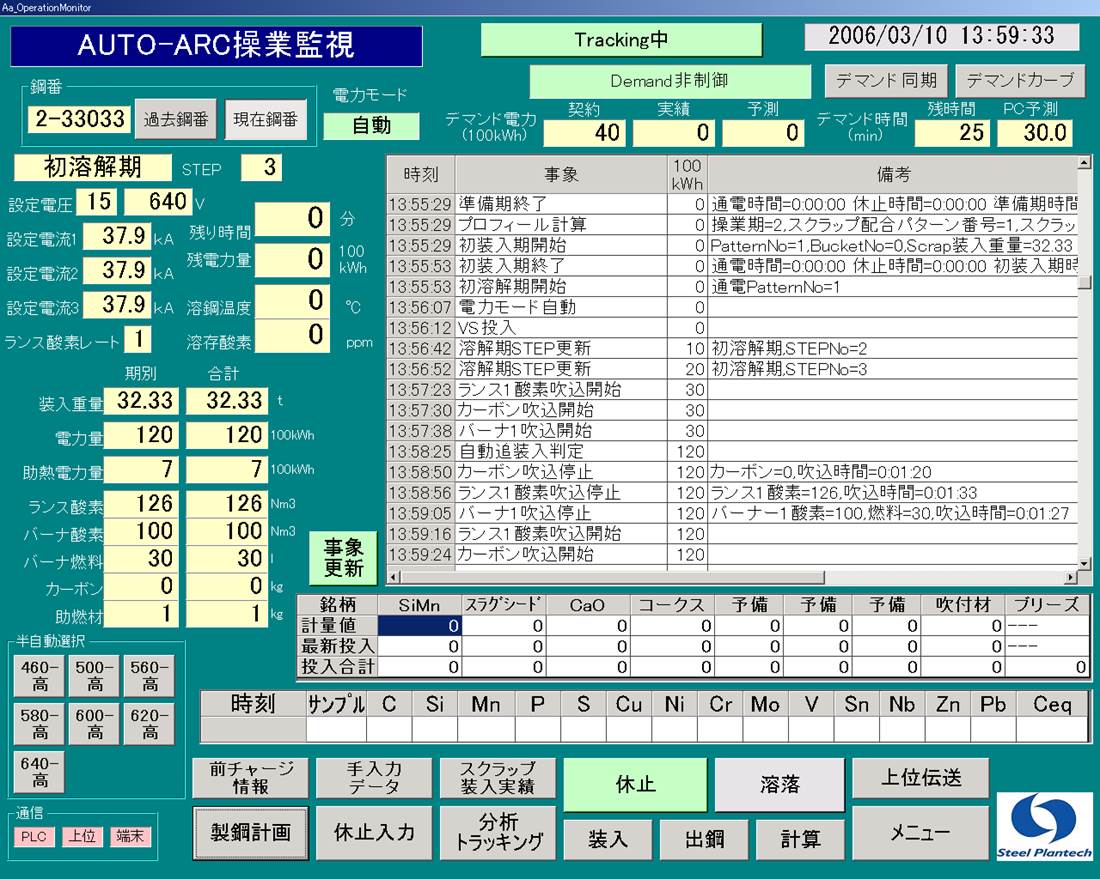

AUTO-ARC

  1. Graphical and user-friendly operator guidance
  2. Graphical and user-friendly operator guidance
  3. Data acquisition and storage of 10,000 charges

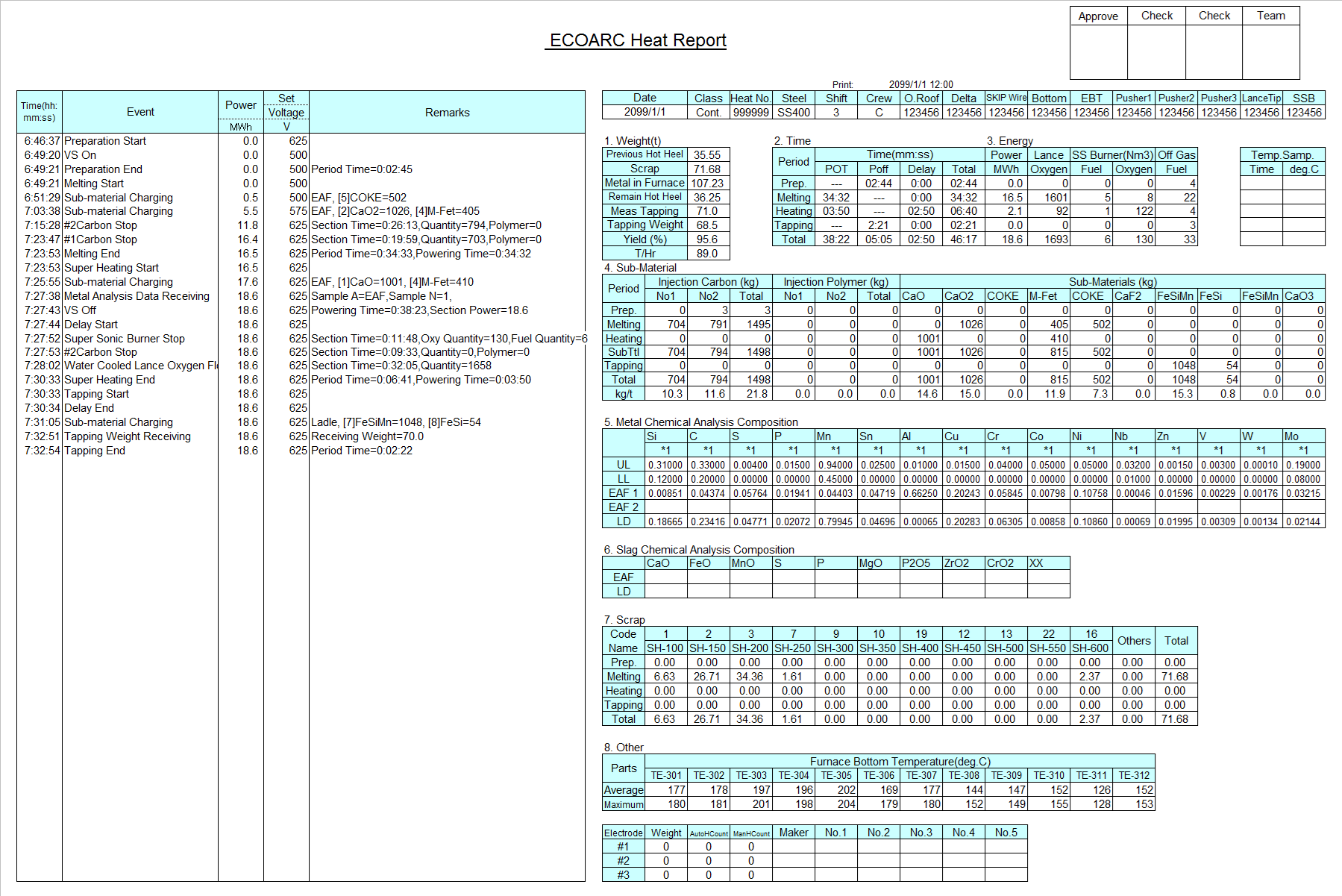

  4. Generation of reports using Excel
  5. Statistical analysis for operational improvement
  6. Hot spot control
  7. Slag foaming guidance

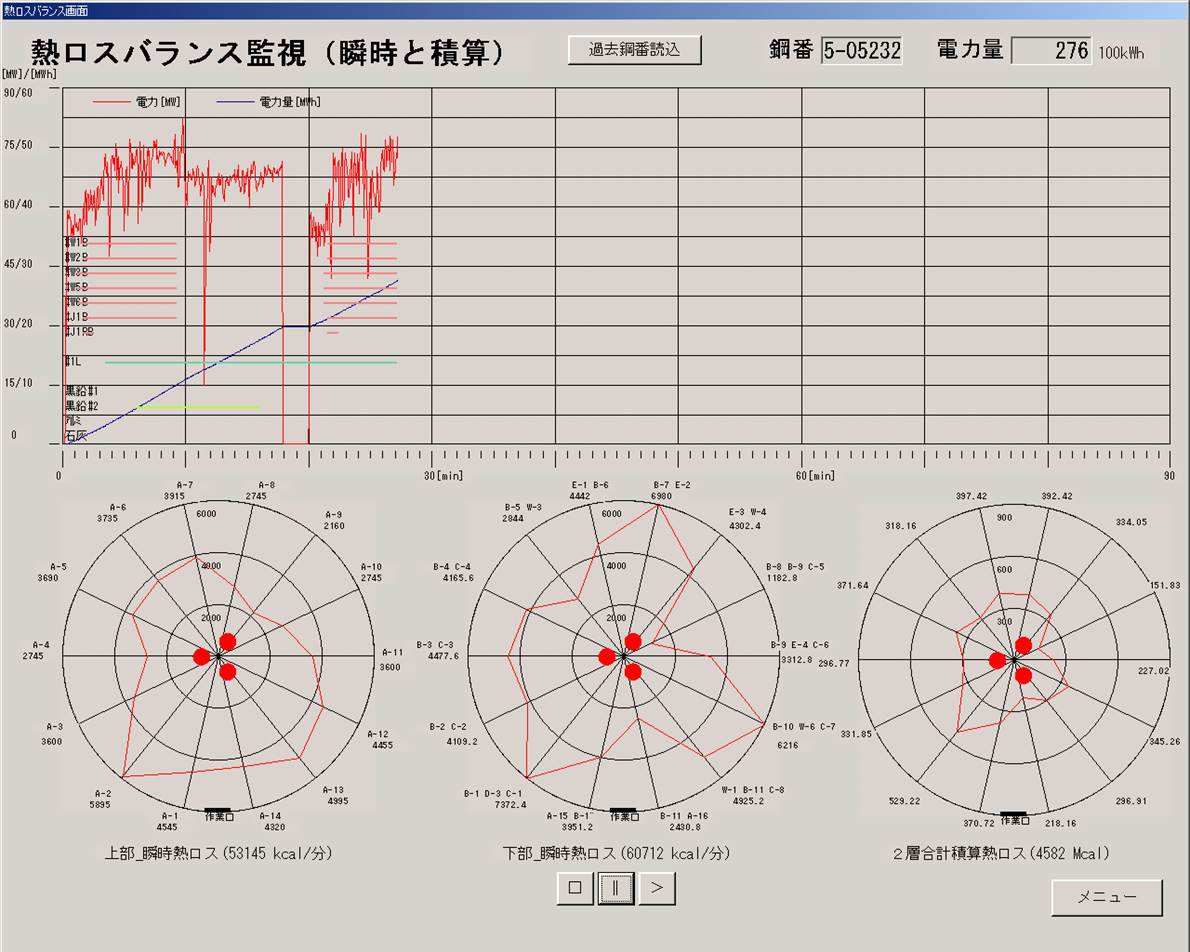

  8. Heat loss monitoring and control
  9. Flicker control
  10. Power demand control

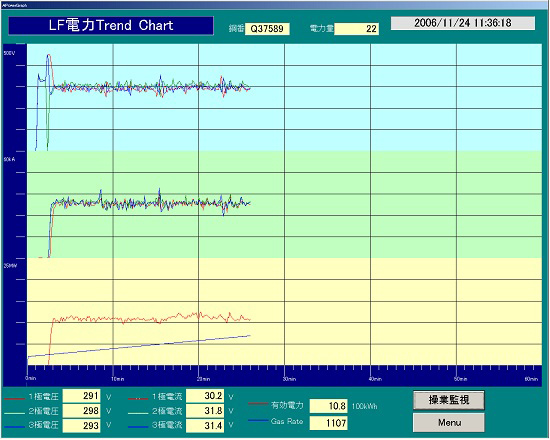

AUTO-LF

  1. Graphical and user-friendly operator guidance
  2. Data acquisition and storage of 10,000 charges
  3. Generation of reports using Excel
  4. Statistical analysis for operational improvement
  5. Metallurgical and thermal model calculation
  6. Bottom bubbling gas control
  7. Alloy/flux calculation and injection control
